Ice Cream Homogenizer

Ice cream homogenizer is suitable for the homogenizing of liquid products whose viscosity is lower than 0.2Pa and whose temperature is lower than 80°C such as dairy, beverage, makeup, and medicine and so on.

This equipment transports the processed material to homogenizing vale in high pressure way by triple plunger pump, making the material receive complex force such as turbulence, cavity, cut when the material flow past the little space between the valve plate and the valve seat to reach the purpose of emulsification and homogenizing.

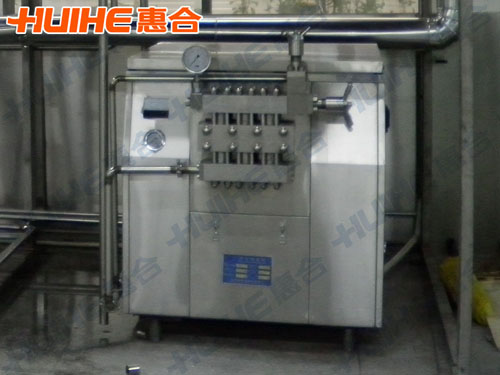

Live Demonstration of High Pressure Homogenizer

Usages of Ice Cream Homogenizer

Emulsification Homogeneous Series is apply to biological medicine, food industry, petroleum chemical, printing and dyeing auxiliaries, paper industry and so on.

Structure of Homogenizer

The stator works in concert with rotor, the working head (the stator and rotor forging manufacturing) is claw type structure, double suction and the shear efficiency is high.

Intermittent high shear scattered homogenizer is a high-speed rotor rotation, forming high frequency and strong circumferential tangent speed, angular speed and other integrated kinetic energy efficiency. Under the role of the stator, the reasonable narrow gap between stator and rotor forms strong, reciprocating hydraulic shear, friction, centrifugal extrusion, flow collision and other comprehensive effect. Material cycles in the container the working process above, obtain the final product.

Characteristics of Ice Cream Homogenizer

1. For soybean milk and other kinds of dairy drink milk, under high pressure for homogeneous, it can make the dairy fat in liquid ball significant refinement, making its products easy to digest and absorb, increase use value.

2. Used in the production of ice cream and other products, it can improve the degree of fineness and loose, making its inherent quality obviously improved.

3. Used for emulsions, glue, fruit juice, slurries and other production, it can prevent or reduce material liquid to layered, improve the look of the material liquid effect, making its color brighter, fragrance thicker, tastes well.

Technical parameters of Homogenizer

Model	Flow L/H	Maximum pressure（MPa）	Rated pressure（MPa）	Motor power（KW）	Body size （lengthwidthheight）
GJJ-0.2/25	200	25	20	2.2	755520935
GJJ-0.3/25	300	25	20	3	755520935
GJJ-0.5/25	500	25	20	4	1010616975
GJJ-0.8/25	800	25	20	5.5	10206761065
GJJ-1/25	1000	25	20	7.5	11006761065
GJJ-1.5/25	1500	25	20	11	11007701100
GJJ-2/25	2000	25	20	15	14108501190
GJJ-2.5/25	2500	25	20	18.5	14108501190
GJJ-3/25	3000	25	20	22	14109601280
GJJ-4/25	4000	25	20	30	155010501380
GJJ-5/25	5000	25	20	37	160512001585
GJJ-6/25	6000	25	20	45	167112601420
GJJ-8/25	8000	25	20	55	167112601420
GJJ-10/25	10000	25	20	75	272513981320
GJJ-12/25	12000	25	20	90	282515001320
GJJ-0.3/32	300	32	25	4	1010616975
GJJ-0.5/32	500	32	25	5.5	10206761065
GJJ-0.8/32	800	32	25	7.5	11006761065
GJJ-1/32	1000	32	25	11	11007701100
GJJ-1.5/32	1500	32	25	15	14108501190
GJJ-2/32	2000	32	25	18.5	14108501190
GJJ-2.5/32	2500	32	25	22	14109601280
GJJ-3/32	3000	32	25	30	155010501380
GJJ-4/32	4000	32	25	37	160512001558
GJJ-5/32	5000	32	25	45	160512001585
GJJ-6/32	6000	32	25	55	167112601420
GJJ-8/32	8000	32	25	75	272513981320
GJJ-0.1/40	100	40	35	3	755520935
GJJ-0.3/40	300	40	35	5.5	10206761065
GJJ-0.5/40	500	40	35	7.5	11006761065
GJJ-0.8/40	800	40	35	11	11007701100
GJJ-1/40	1000	40	35	15	14108501190
GJJ-1.5/40	1500	40	35	22	14108501280
GJJ-2/40	2000	40	35	30	155010501380
GJJ-2.5/40	2500	40	35	37	160512001585
GJJ-3/40	3000	40	35	45	160512001585
GJJ-4/40	4000	40	35	55	167112601420
GJJ-5/40	5000	40	35	75	200014001500
GJJ-6/40	6000	40	35	90	282515001320
GJJ-0.1/60	100	60	50	4	10206761065
GJJ-0.2/60	200	60	50	5.5	10206761065
GJJ-0.360	300	60	50	7.5	11006761065
GJJ-0.560	500	60	50	11	11007701100
GJJ-0.8/60	800	60	50	18.5	14108501190
GJJ-1/60	1000	60	50	22	14709601280
GJJ-1.5/60	1500	60	50	37	160512001585
GJJ-2/60	2000	60	50	45	200013001585
GJJ-2.5/60	2500	60	50	55	200013001585
GJJ-3/60	3000	60	50	75	272513981320
GJJ-4/60	4000	60	50	90	282515001320
GJJ-5/60	5000	60	50	110	282515001320
GJJ-0.1/70	100	70	60	5.5	10206761065
GJJ-0.2/70	200	70	60	7.5	11006761065
GJJ-0.3/70	300	70	60	11	11007701100
GJJ-0.5/70	500	70	60	15	14108501190
GJJ-1/70	1000	70	60	22	14108501280
GJJ-1.5/70	1500	70	60	37	160512001585
GJJ-2/70	2000	70	60	45	200013001585
GJJ-2.5/70	2500	70	60	55	167112601420
GJJ-3/70	3000	70	60	75	272513981320
GJJ-4/70	4000	70	60	90	282515001320
GJJ-5/70	5000	70	60	110	282515001320
GJJ-0.1/100	100	100	80	7.5	11006761065
GJJ-0.2/100	200	100	80	11	11007701100
GJJ-0.3/100	300	100	80	15	14108501190
GJJ-0.5/100	500	100	80	18.5	14108501190
GJJ-1/100	1000	100	80	37	160512001585
GJJ-2/100	2000	100	80	75	272513981320
GJJ-3/100	3000	100	80	110	282515001320

Notes：

1. The technical parameters of homogenizer in chart are all standard, any requirements, please put forward.

2. process parameters needed provided: the material properties, production, maximum pressure, special requirements, etc.

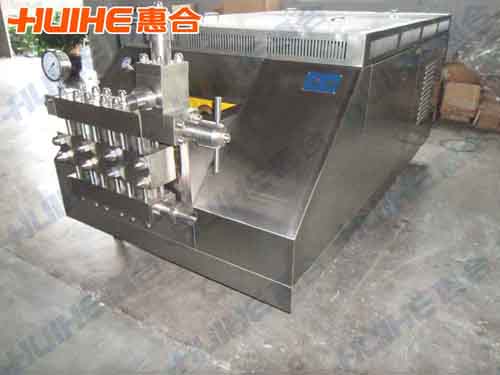

Ice Cream Homogenizer Finished Picture
